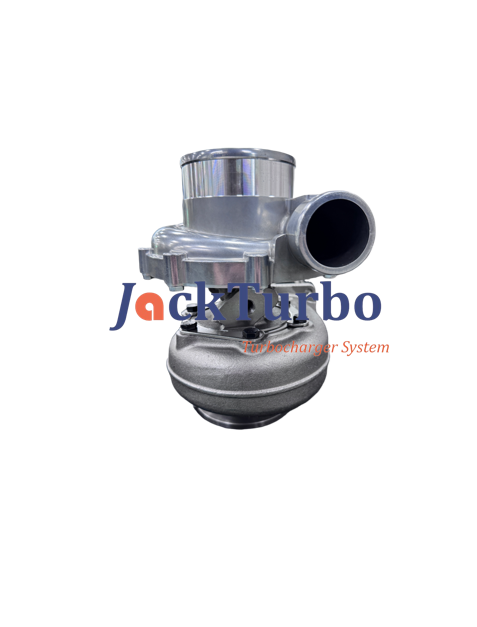

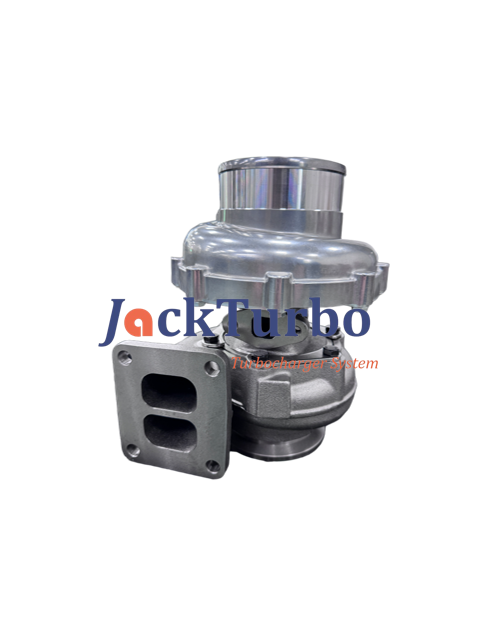

Turbo Parts No.:RE528770
OE No.:RE550941 RE550932 RE529464 RE528770 RE550933
Turbo Model:K27 FREZ
Turbo Brand:CZ
Car Application:JOHN DEERE -6068 C23-228 / 710J Backhoe / 544 Loader / Tractor GenSet(175kW) / Crawler 700 / W330 Combine / Tractor 6000 Series / 700J Crawle
JACK ID:J20K27-432
Details
CHRA Balancing Test: <0.5Mg.mm / 150000RPM
Shaft wheel material: K418+42CrMo
Compressor wheel material: C355 for normal or 2618 for billet
Bearing Housing material: HT250 Gray Iron and high Ni for shift link arm
Back plate material: ADC12 YL102 or Iron for some big models.
Nozzle ring material: K418
Thrust bearing material：Brass Bar Fluorine Gum
O-ring material: Fluorine Gum
Thrust collar material: 42CrMo
Piston Ring material: W6+ 3Cr13
