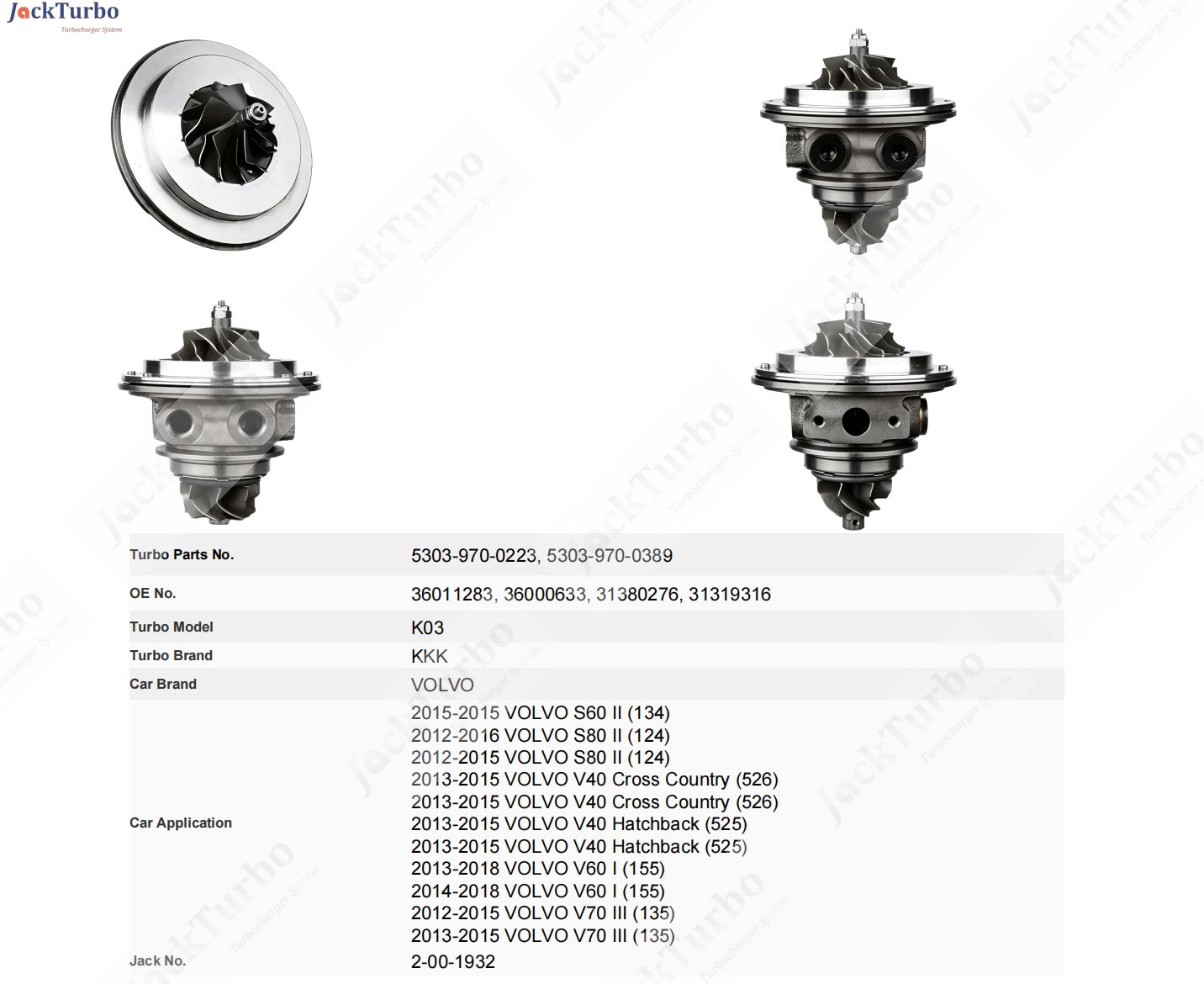

Turbo Parts No.:5303-970-0223, 5303-970-0389
OE No.:36011283, 36000633, 31380276, 31319316
Turbo Model:K03
Turbo Brand:KKK
Car Application:2015-2015 VOLVO S60 II (134);2012-2016 VOLVO S80 II (124);2012-2015 VOLVO S80 II (124);2013-2015 VOLVO V40 Cross Country (526);2013-2015 VOLVO V40 Cross Country (526);2013-2015 VOLVO V40 Hatchback (525);2013-2015 VOLVO V40 Hatchback (525);2013-2018 VOLVO V60 I (155);2014-2018 VOLVO V60 I (155);2012-2015 VOLVO V70 III (135);2013-2015 VOLVO V70 III (135)
JACK ID:2-00-1932
Details
CHRA Balancing Test: <0.5Mg.mm / 150000RPM
Shaft wheel material: K418+42CrMo
Compressor wheel material: C355 for normal or 2618 for billet
Bearing Housing material: HT250 Gray Iron and high Ni for shift link arm
Back plate material: ADC12 YL102 or Iron for some big models.
Nozzle ring material: K418
Thrust bearing material：Brass Bar Fluorine Gum
O-ring material: Fluorine Gum
Thrust collar material: 42CrMo
Piston Ring material: W6+ 3Cr13
