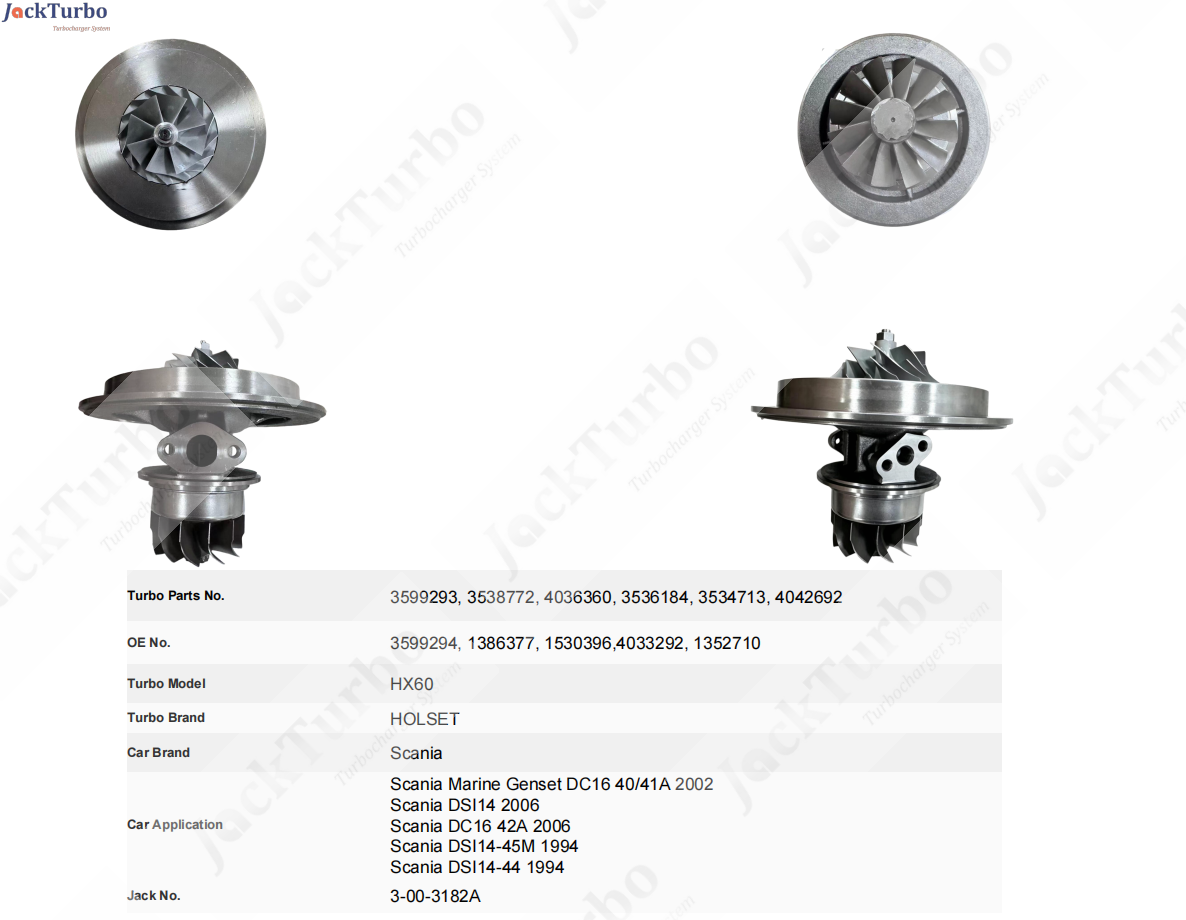

Turbo Parts No.:3599293, 3538772, 4036360, 3536184, 3534713, 4042692
OE No.:3599294, 1386377, 1530396,4033292, 1352710
Turbo Model:HX60
Turbo Brand:HOLSET
Car Application:Scania Marine Genset DC16 40/41A 2002;Scania DSI14 2006;Scania DC16 42A 2006;Scania DSI14-45M 1994;Scania DSI14-44 1994
JACK ID:3-00-3182A
Details
CHRA Balancing Test: <0.5Mg.mm / 150000RPM
Shaft wheel material: K418+42CrMo
Compressor wheel material: C355 for normal or 2618 for billet
Bearing Housing material: HT250 Gray Iron and high Ni for shift link arm
Back plate material: ADC12 YL102 or Iron for some big models.
Nozzle ring material: K418
Thrust bearing material：Brass Bar Fluorine Gum
O-ring material: Fluorine Gum
Thrust collar material: 42CrMo
Piston Ring material: W6+ 3Cr13
