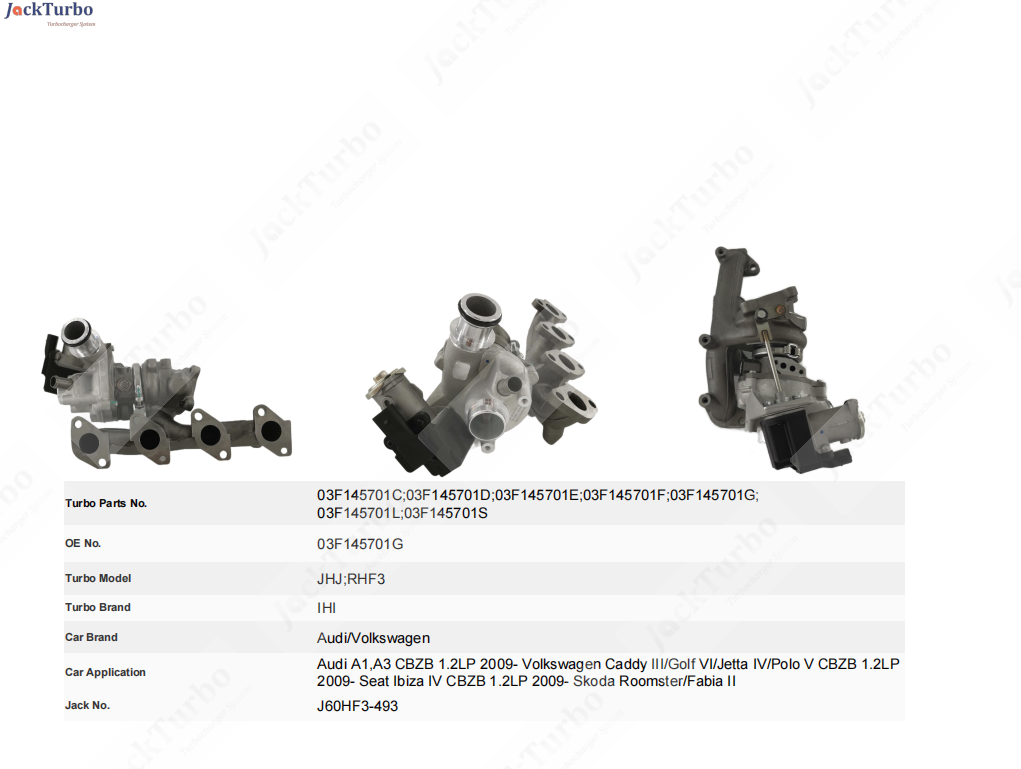

Turbo Parts No.:03F145701C;03F145701D;03F145701E;03F145701F;03F145701G;03F145701L;03F145701S
OE No.:03F145701G
Turbo Model:JHJ;RHF3
Turbo Brand:IHI
Car Application:Audi A1,A3 CBZB 1.2LP 2009- Volkswagen Caddy III/Golf VI/Jetta IV/Polo V CBZB 1.2LP 2009- Seat Ibiza IV CBZB 1.2LP 2009- Skoda Roomster/Fabia II
JACK ID:J60HF3-493
Details
CHRA Balancing Test: <0.5Mg.mm / 150000RPM
Shaft wheel material: K418+42CrMo
Compressor wheel material: C355 for normal or 2618 for billet
Bearing Housing material: HT250 Gray Iron and high Ni for shift link arm
Back plate material: ADC12 YL102 or Iron for some big models.
Nozzle ring material: K418
Thrust bearing material：Brass Bar Fluorine Gum
O-ring material: Fluorine Gum
Thrust collar material: 42CrMo
Piston Ring material: W6+ 3Cr13
