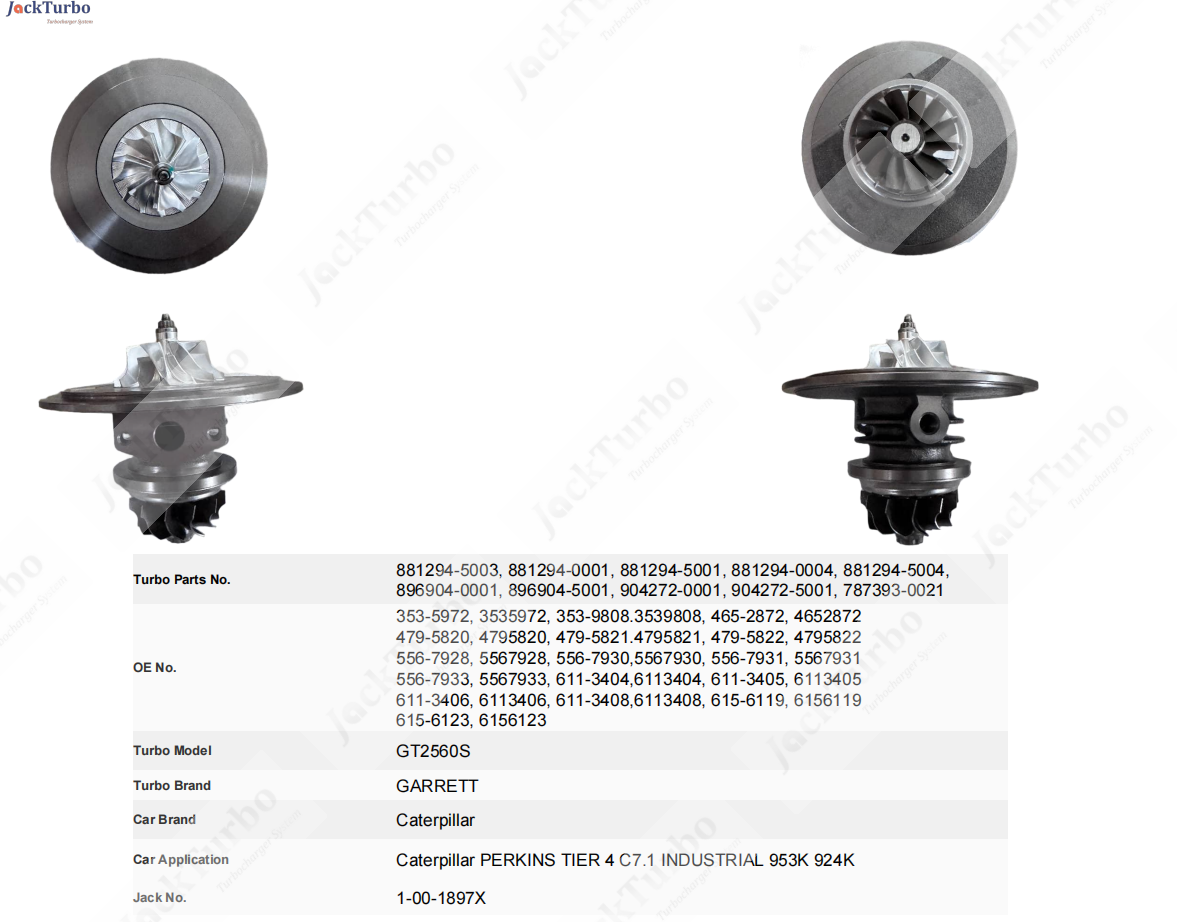

Turbo Parts No.:881294-5003, 881294-0001, 881294-5001, 881294-0004, 881294-5004,896904-0001, 896904-5001, 904272-0001, 904272-5001, 787393-0021
OE No.:353-5972, 3535972, 353-9808.3539808, 465-2872, 4652872,479-5820, 4795820, 479-5821.4795821, 479-5822, 4795822,556-7928, 5567928, 556-7930,5567930, 556-7931, 5567931,556-7933, 5567933, 611-3404,6113404, 611-3405, 6113405,611-3406, 6113406, 611-3408,6113408, 615-6119, 6156119,615-6123, 6156123
Turbo Model:GT2560S
Turbo Brand:GARRETT
Car Application:Caterpillar PERKINS TIER 4 C7.1 INDUSTRIAL 953K 924K
JACK ID:1-00-1897X
Details
CHRA Balancing Test: <0.5Mg.mm / 150000RPM
Shaft wheel material: K418+42CrMo
Compressor wheel material: C355 for normal or 2618 for billet
Bearing Housing material: HT250 Gray Iron and high Ni for shift link arm
Back plate material: ADC12 YL102 or Iron for some big models.
Nozzle ring material: K418
Thrust bearing material：Brass Bar Fluorine Gum
O-ring material: Fluorine Gum
Thrust collar material: 42CrMo
Piston Ring material: W6+ 3Cr13
